Electric Linear Actuator

​ELA35  Standard Model 2200N

Ball Screw|Planetary Gearbox  |IP68
Overload Protection|Stroke Setting

ELA35 STP File Download

Overview

ELA35 is the most popular model and widely used in several industries, especially for industrial automation.


The compact tubular design integrating high efficient ball-screw transmission and durable brush motor makes everything simple and neat.


Built-in over current detection (OCD) unit provides users with extra proactive safety measure.



Accessories such as external reed switch, limit switch, remote controller, control box and power supply are optional.

*With a 12V motor, the current is approximately twice the current measured in 24V.

electric linear actuator over current detection unit

Over Current Detection (OCD)

OCD unit monitors the status of current at all times. When it reaches stroke limit or encounters any blockage on its way, the OCD unit shuts motor down proactively to prevent it from burning out.

Taiwan Invention Patent No: I671995

US Patent No: US10630214B2 DC Motor Controller

Anti Pinch With Load Setting

Set up the max. load based on your demand to make it work smarter. For instance, to lift an object weights 15kg, an actuator with preset max. load 20kg reserves 5kg allowance to activate anti pinch function.

ELAXX Reed Switch Setting02.jpg

Stroke Setting

Sometimes the existing product does not fit perfectly with your demand. For example, you could hardly find an actuator with stroke 170mm from the market but that is what you actually need.

Not a problem, just connect our actuator with external reed switches, adjust the stroke, and everything is done.


Work With Reed Switches

Function S: Stroke setting, 1 set of wiring (2 wires) each for the upper and lower limits. It can be connected to A-contact switches, such as reed switches, limit switches, push switches, tact switches, etc.

Function RStroke setting, 1 set of wiring (2 wires) each for the upper and lower limits. The reed switch has been connected, and the cylinder piston has a built-in magnetic ring. The position of the piston can be sensed when the reed switch is close.

ELA Linear Actuator Features20_HURD.jpg

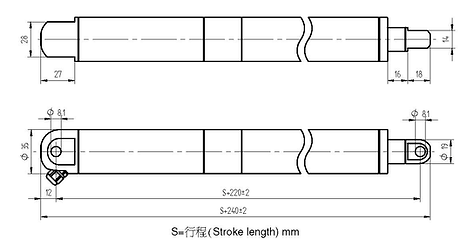

​Product Code

ELA35 - XXX - XXX - XX - X

                 Stroke   Load   Voltage  Function

Please kindly indicate your demand with the above coding principle while contacting us, thanks.

Scope of Application

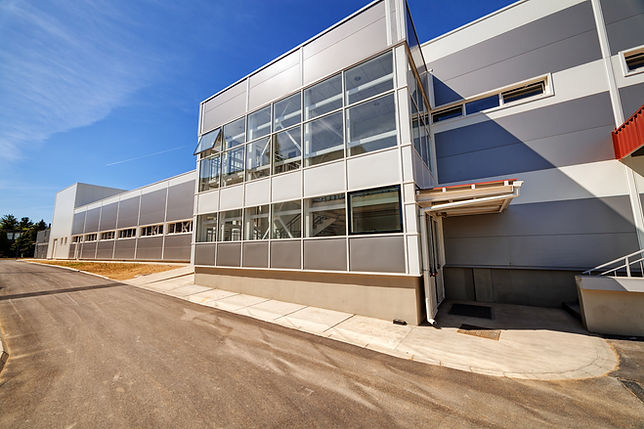

Facilitate natural ventilation in various buildings in the form of general windows, shutters, skylights, transoms or louvres.

Electric Window Opener

Through the movement of the electric linear actuator after the compilation and calculation of CNC system, tasks such as parts processing and cabin door controlling could be realized.

Industrial Machinery

The feed flow rate and operating angle of tractors, harvesters or planters can be adjusted through electric linear actuators.

Agricultural Machinery

For helm seats, skylights, hatch doors, ladders, antennas and flip down ceiling TVs.

Higher Ingress Protection level is required to deal with sea water and sea air corrosion.

Yacht

A type of parallel robot that has six prismatic actuators attached in pairs to three positions on the platform's baseplate, crossing over to three mounting points on a top plate.

Stewart Platform

Users could adjust the height of seat or the angle on their backs.

Electric Wheelchair
